Therm Coil A-12053 Model

Drawing Number: 352F-1254-024

Incoloy Sheath Elements With Brass Screw Plug:

If in doubt about which materials are required for your application, please contact us at 1-724-872-5007 or .

• INCOLOY® Sheath with Brass Screw Plug (Silver Brazed): Our A-models with 45-55 watt density (W/IN.²) are for use in clean water, some marine environments including brackish water and seawater with moderate to low currents, and select mildly corrosive liquids (absolutely no hydroxides, cyanides, or oxidizing acids).

Non-regulated (No thermostat):

• If you need this type of element but with temperature control, please see our .

Enclosure:

• NEMA 1, General Purpose Enclosure: the default enclosure type.

• Alternate Enclosures Are Available ():

            ●  Weather-Resistant Enclosures
            ●  Explosion-Resistant Enclosures (Also Dust & Weather-Resistant)

General Information:

• 12000W @ 480V 3-Phase
• Includes Thermowell: accommodates up to 3/8" DIA. sensing bulb.
• Screw plug immersion heaters must be fully covered by your liquid to prevent heater failure. (Other medium applications are possible, but require factory consultation.)
• All 240V models have the option to be operated at 208 VAC with a 25% reduction in wattage rating.

Technical Specifications

• Element Sheath Material: Incoloy 800
• Quantity Of Elements: 3

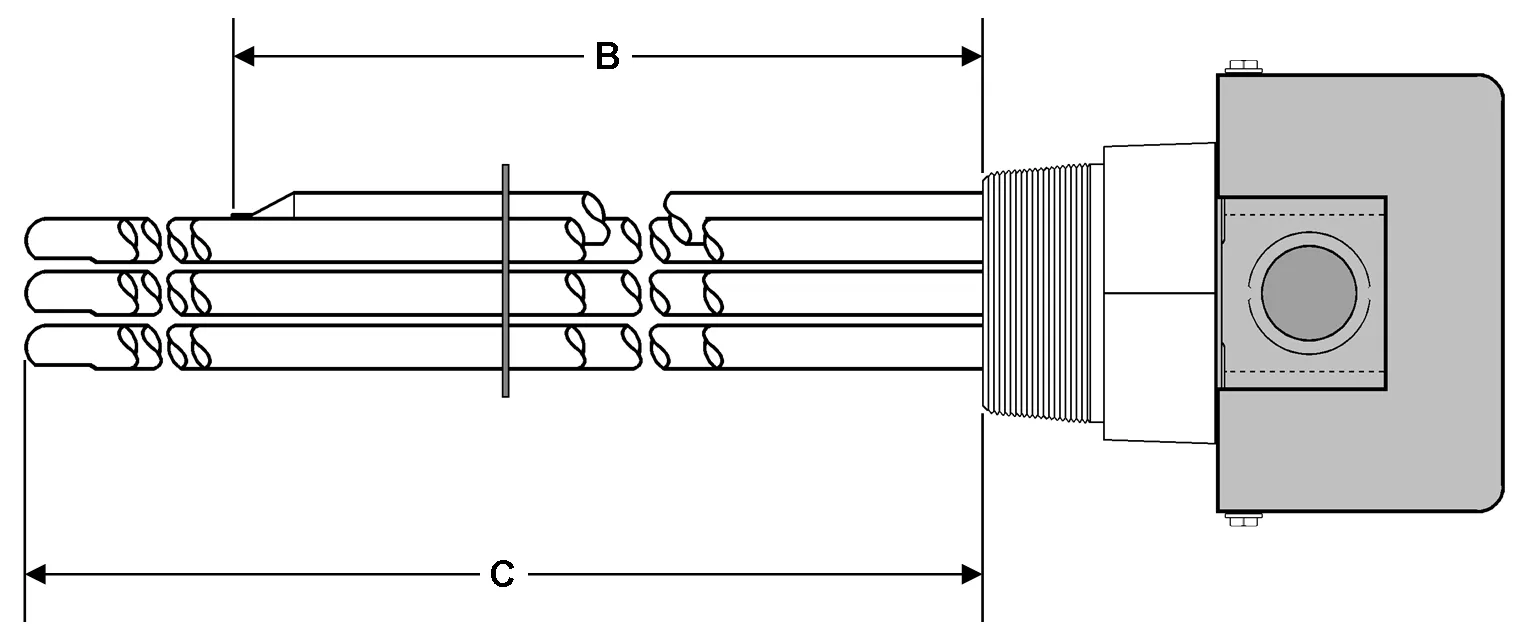

• Immersion Length: 31" (C Dim.)

• Terminal Connections: #10-32 Stud Terminals & Includes (3x) 7" Lead Wires

• Screw Plug Size: 2" NPT
• Screw Plug Material: Brass
• Enclosure Type: NEMA 1 General Purpose
• Thermowell Immersed Length: (B Dim.)
• Thermowell Accommodates Sensing Bulb Size: .375" DIA.
• Temperature Control Type: None
• Temperature Control Range: N/A
